Supporting Digital transformation of a leading smart utilities manufacturer
Development of SPIDAP
Apator Powogaz
Grupa Apator is an international group of producers and distributors of modern measuring devices
and systems, as well as suppliers of innovative solutions for the automation of power grid
operation.
Consists of a dozen or so entities, with headquarters in Poland and subsidiaries in
Germany, Great Britain, Czech Republic, Russia, Slovenia and Denmark.
An internet platform for downloading the read data of Apator Powogaz devices, further analysis and presentation of this data to individual end customers.
RESOURCES
structure
readings
clients
SPIDAP engine
• Enterprise account
• Distributor account
• Supply chain and warehouse
RESOURCES
• Users database
• License base
• Product database
• Orders database
• Key distribution (Export, API)
STRUCTURE
• Locations database
• Measuring devices database
• Reading routes database
SPIDAP mobile
• Mobile readings
• Device installation and service
• Device configuration
READINGS
• Mobile readings database
• Stationary readings database
• Device alarm database
• Computation/ analysis of readings
CLIENTS
• Utility consumption reports database
• Clients/ residents database
SPIDAP client
• Resitents management
• Readings presentation
• Utility accounting
• Payments
• Complex housing association management
A mobile application that performs readings in the walk-by / drive-by system, allows you to check the configuration of reading devices as well as their installation and service.

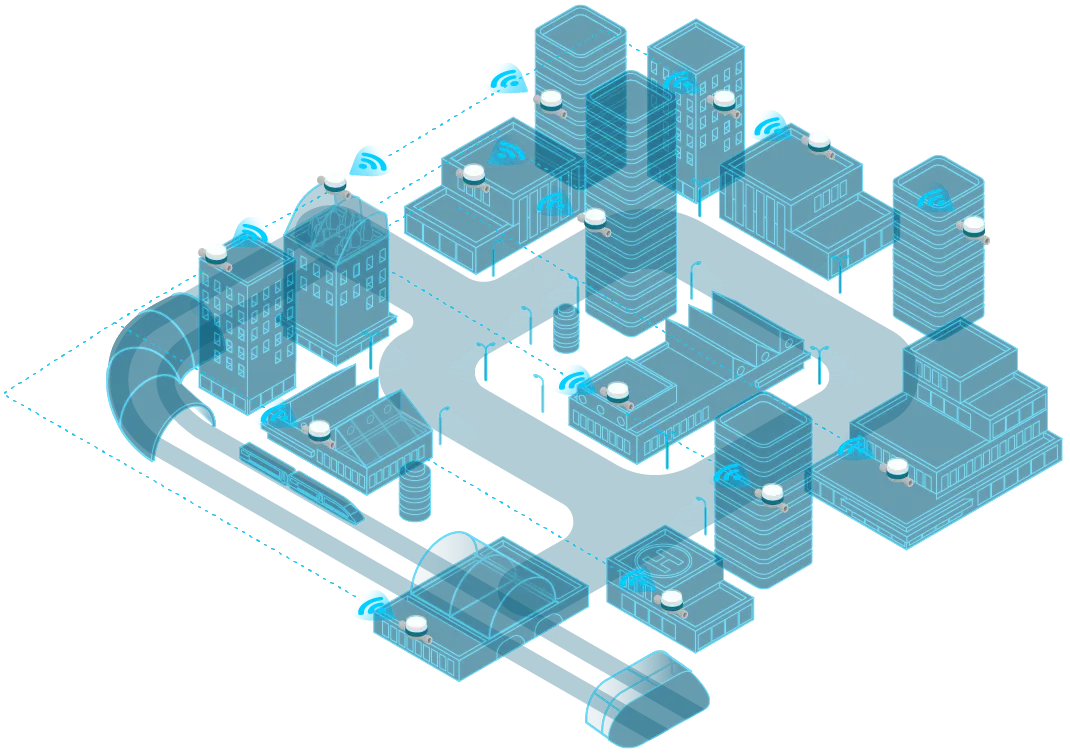

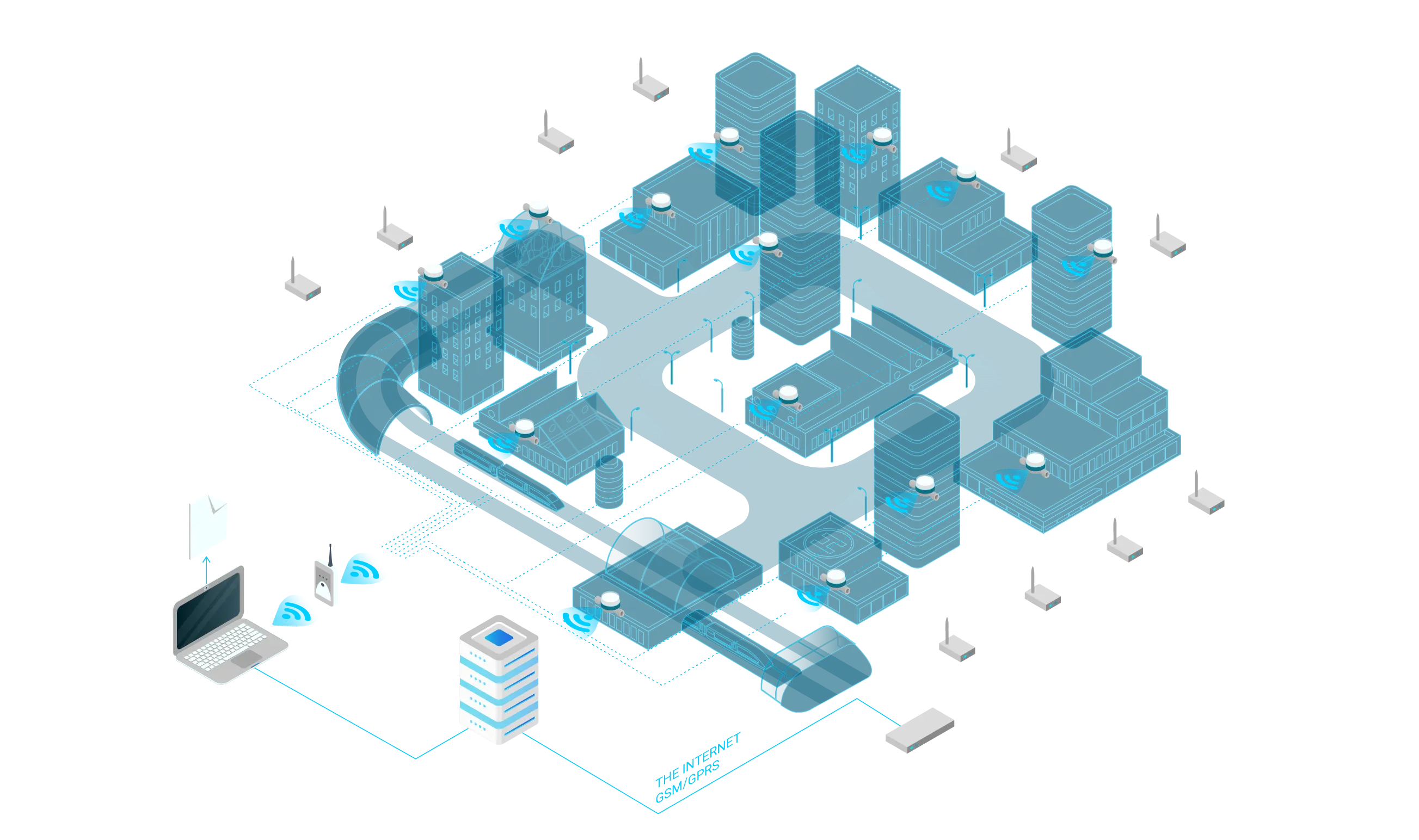

The SPIDAP system is part of telemetry system for remote reading and configuration of water meters, heat meters and heat allocators in your city.
UTILITY MEASURING DEVICE
Apator measuring devices with a radio overlay (module) that communicates with the radio modules and retransmitters. The overlays transmit data read from the measuring device via the module to the smartphone.
CSV/ TXT
All data stored in the Spidap system can be exported to a file of various formats. The function allows you to migrate data to other systems.
SPIDAP SYSTEM
The SPIDAP system stores structure data and on its basis collects reading data from measuring devices of Apator Powogaz, processes the data and makes it available for further use by users.
RADIO MODULE
The communication module listens to and receives radio frames sent from radio overlays and then sends them via the Bluetooth interface to a smartphone with the SPIPAD mobile system installed.
TELEMETRY SERVER
Data from the SPIDAP system or from concentrators are sent via the GSM/GPRS/ Ethernet/ Internet network to the telemetry server database for further analysis.
CONCENTRATOR
A device designed to collect data transmitted from radio modules cooperating with measuring devices. Cooperation of the concentrator with retransmitters contributes to the creation of a network with a greater number of read devices.
RETRANSMITTER
A retransmitter is a device that mediates the radio transmission between the measuring device radio overlays/ modules and the concentrator. The repeater increases the maximum allowable distance between these devices.
Internet platform allowing individual end customers to check the consumption of utilities metered by Apator Powogaz devices.
